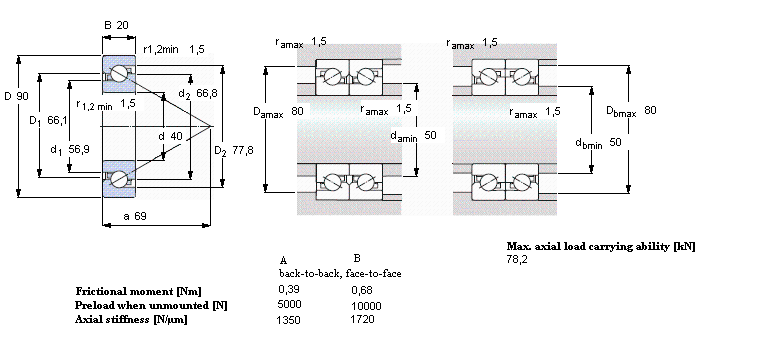

| 角接觸推力球軸承 for screw drives, single direction | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 40 | 90 | 20 | 64 | 170 | 6,3 | 6000 | 7000 | 0,68 | BSD 4090 CG | BS 40/90 7P62U | |
我公司特價供應以下型號產品： 6010DD 深溝球軸承 560S/552A 圓錐滾子軸承 AH2308 推卸套 NN3096-AS-K-M-SP 圓柱滾子軸承 C3984M CARB圓環滾子軸承 29420 推力滾子軸承 562016 雙向推力角接觸球軸承 40FC28170 四列圓柱滾子軸承 NUP2220ET 圓柱滾子軸承
