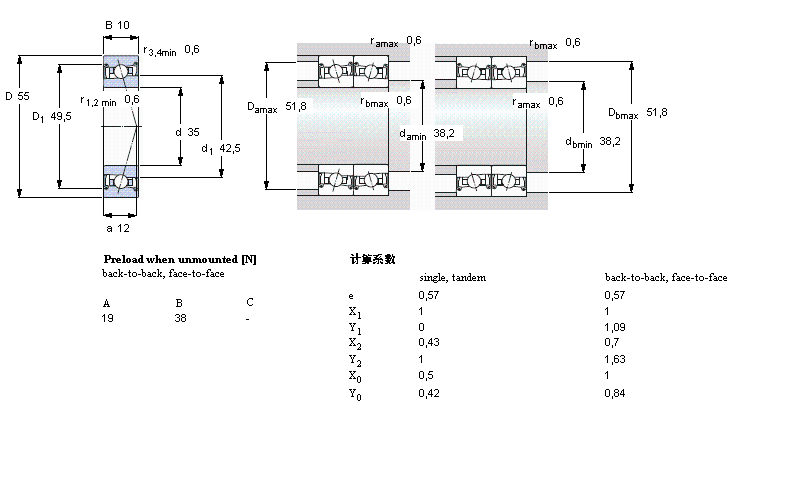

| 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 35 | 55 | 10 | 6,89 | 6,3 | 0,265 | 36000 | - | 0,071 | SC71907 FB/P7 | - | |
我公司特價供應以下型號產品： 4T-388A/382A 英制圓錐滾子軸承 5200-2NS 角接觸球軸承 NCF2948V.C3 圓柱滾子軸承 HK3016 滾針軸承 NU2324E.M1 圓柱滾子軸承 6304V 深溝球軸承 3877 英制圓錐滾子軸承 GAY12-NPP-B-FA164 外球面球軸承 21313CD 調心滾子軸承
