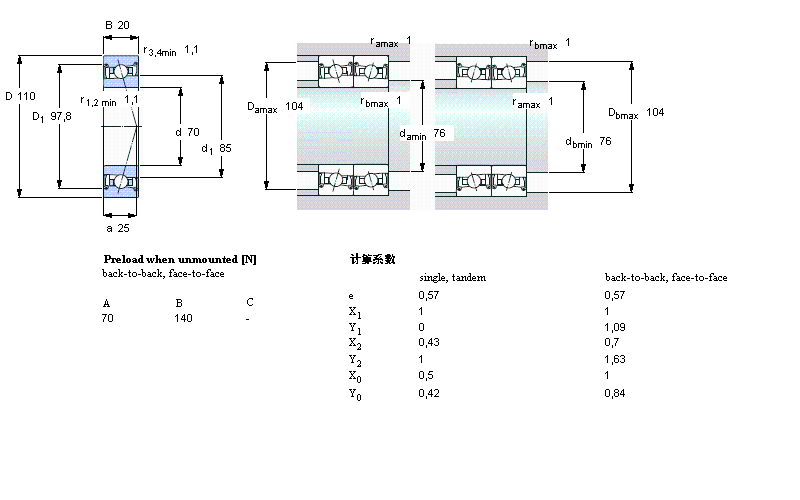

| 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 70 | 110 | 20 | 26 | 28 | 1,2 | 18000 | - | 0,61 | SC7014 FB/P7 | - | |
我公司特價供應以下型號產品： B71915C.T 角接觸球軸承 71902C/DT 角接觸球軸承 29236 推力滾子軸承 RNA6912 滾針軸承 22206-E1 調心滾子軸承 BC4B320612 圓柱滾子軸承 7203AC 角接觸球軸承 NJ413 圓柱滾子軸承 RASE1/2 直立式軸承座單元
