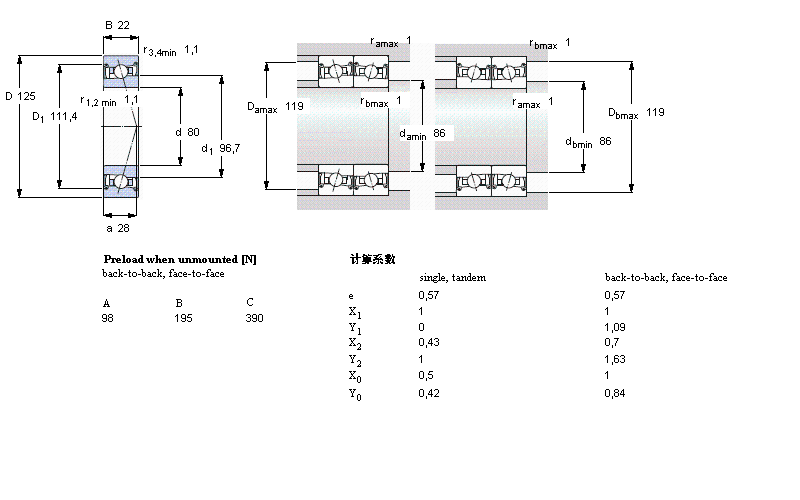

| 角接觸球軸承, 精密, S .. FB, sealed, contact angle 18° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 80 | 125 | 22 | 35,1 | 39 | 1,63 | 13000 | - | 0,89 | S7016 FB/P7 | - | |
我公司特價供應以下型號產品： S71916FB/P7 角接觸球軸承 53413 推力球軸承 K20x26x20 滾針軸承 32252 圓錐滾子軸承 CR32X45X8HMSA10V 徑向軸密封件 HCB71926-C-T-P4S 主軸軸承 NNU4964K 雙列圓柱滾子軸承 BHAM1012 沖壓滾針軸承 1312-TVH 自調心球軸承
