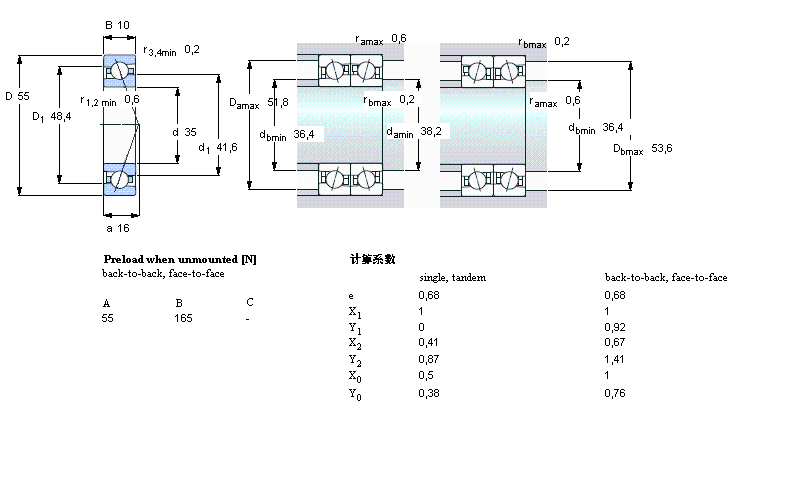

| 角接觸球軸承, 精密, ACE, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 35 | 55 | 10 | 7,15 | 4,15 | 0,176 | 30000 | 48000 | 0,075 | 71907 ACE/P4A | - | |
我公司特價供應以下型號產品： 2311K 自調心球軸承 1994X/1922 單列圓錐滾子軸承 B7207C.T.P4S.UL 角接觸球軸承 SY1.1/4TF Y-型立式軸承座單元 HCS71914-C-T-P4S 主軸軸承 1320K+H320X 帶緊定套調心球軸承 TLAM1512 沖壓滾針軸承 708ACD/HCP4A 角接觸球軸承 21312EK+H312 球面滾子軸承
